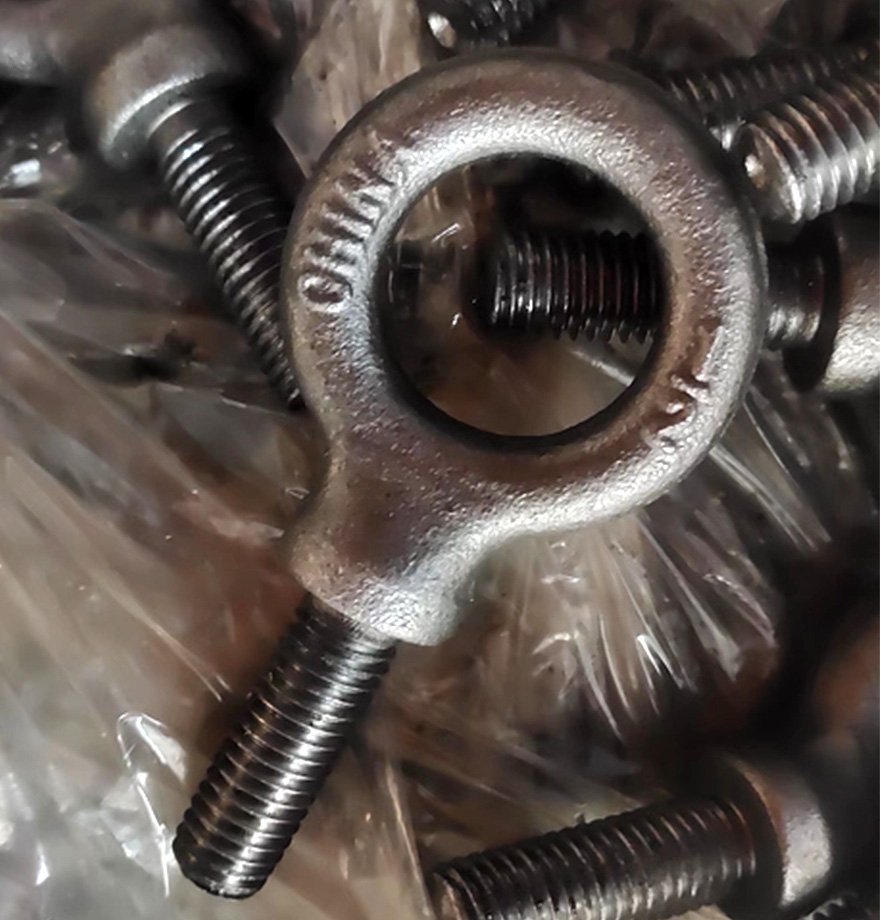

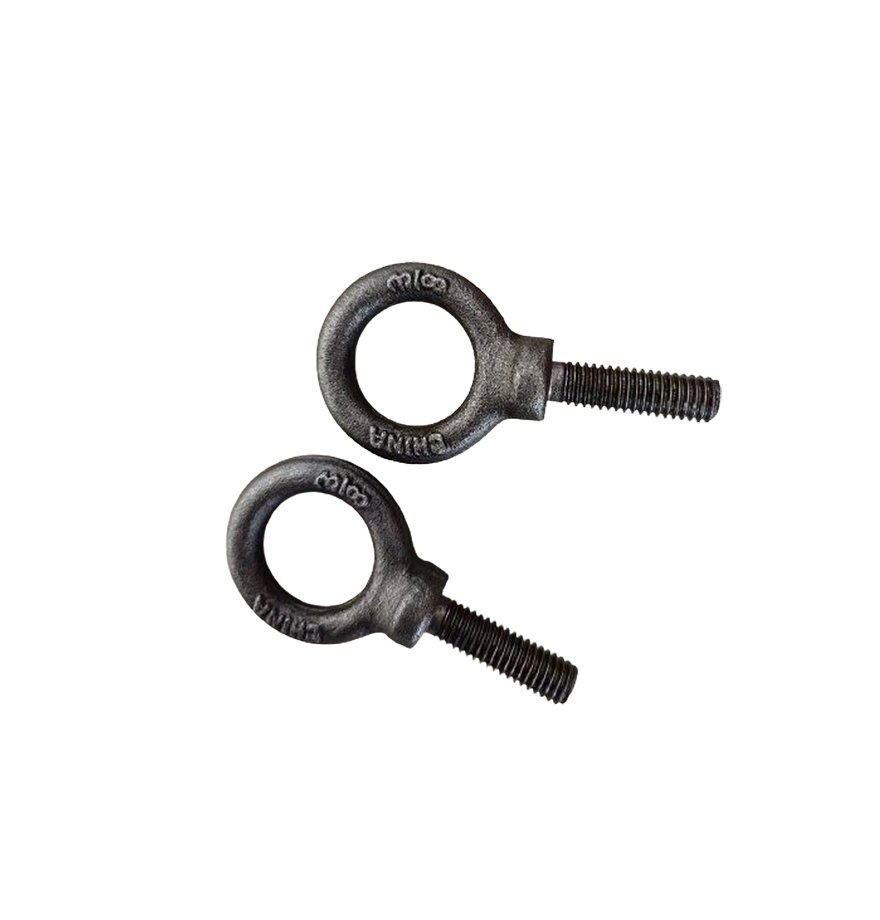

U.S. TYPE DROP FORGED SHOULDER MACHINERY EYEBOLT
Product Introduction
· Material: Carbon Steel
· Surface Finish: Hot Dip Galvanized
· Technology: Drop Forged
· Size: From 1/4″*1” to 1 1/4″ *3”
· Standard: US Type
Table parameters
| Size(in) | W.LL.(Ibs) | Weight (lbs) |
| 1/4 X 1 | 500 | 0.032 |
| 5/16X11/8 | 800 | 0.062 |
| 3/8 X11/4 | 1200 | 0.125 |
| 1/2X11/2 | 2200 | 0.25 |
| 5/8 X13/4 | 3500 | 0.50 |
| 3/4 X 2 | 5200 | 0.875 |
| 7/8X 21/4 | 720 | 1.50 |
| 1X21/2 | 10000 | 2.18 |
| 11/4X3 | 15200 | 3.80 |
