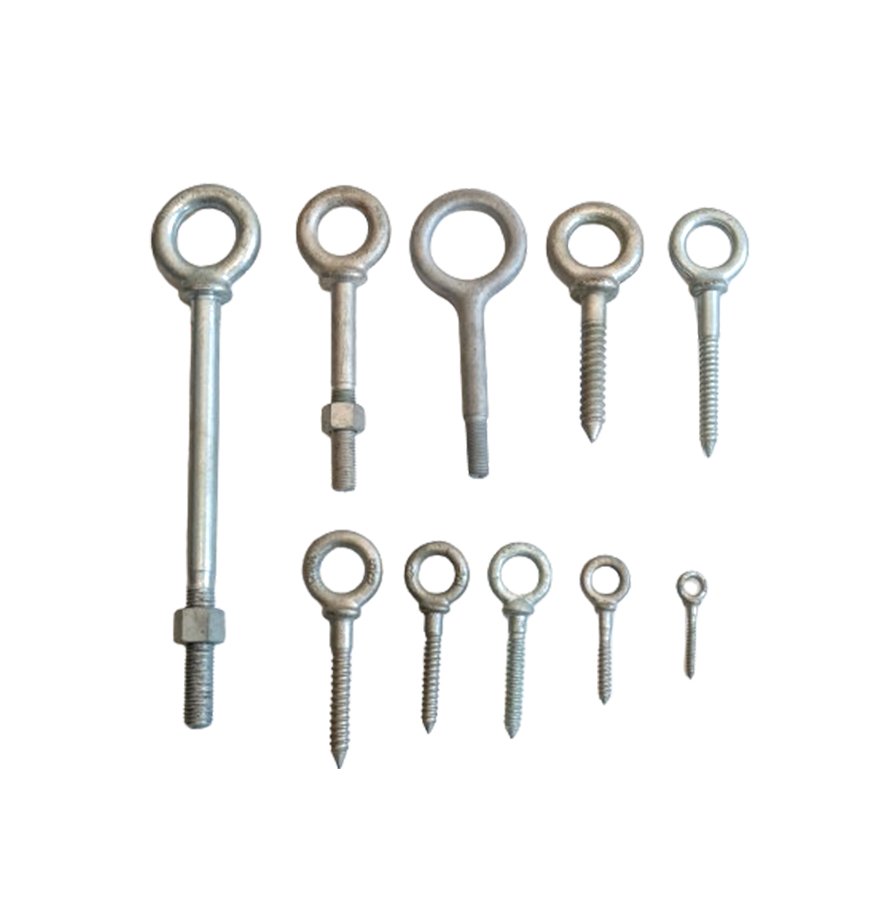

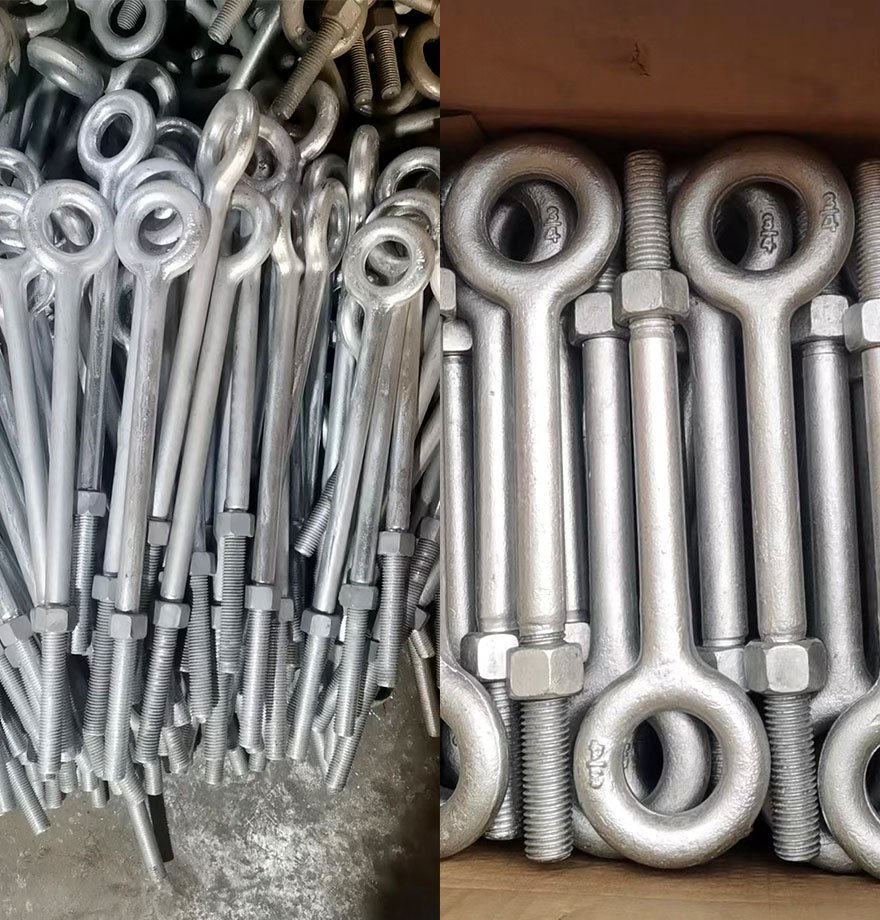

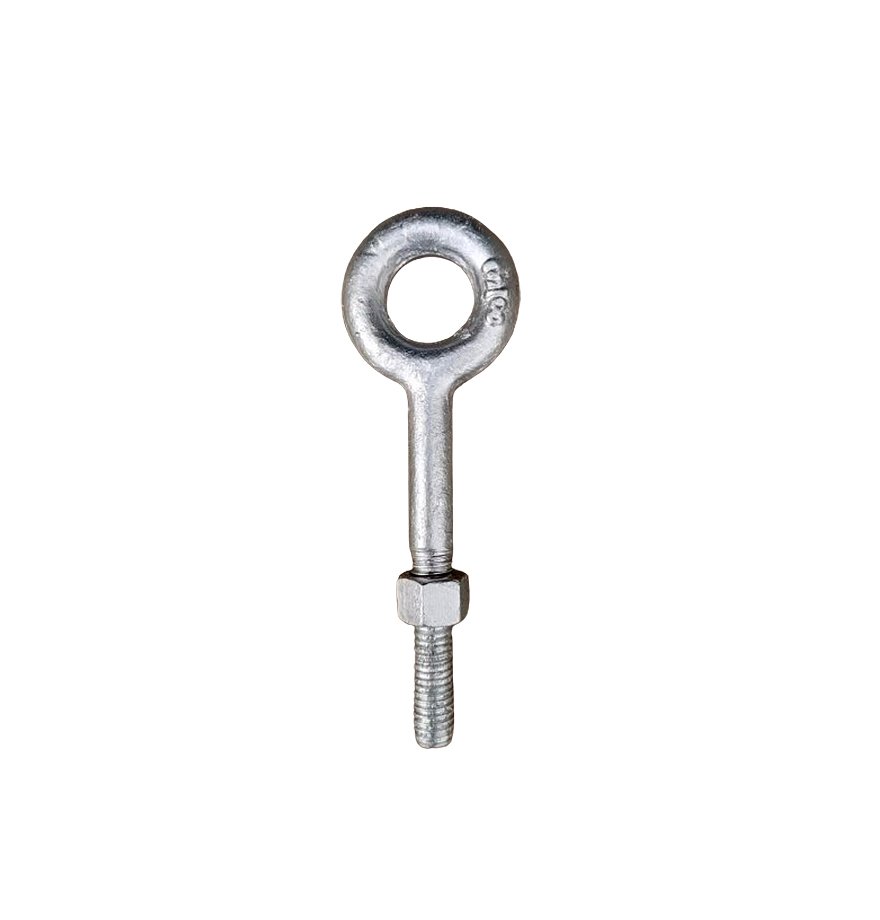

REGULAR NUT EYEBOLT
Product Introduction
· Material: Carbon Steel
· Surface Finish: Hot Dip Galvanized
· Technology: Drop Forged
· Size: From 1/4″*2” to 1 1/4″ *20”
· Standard: US Type

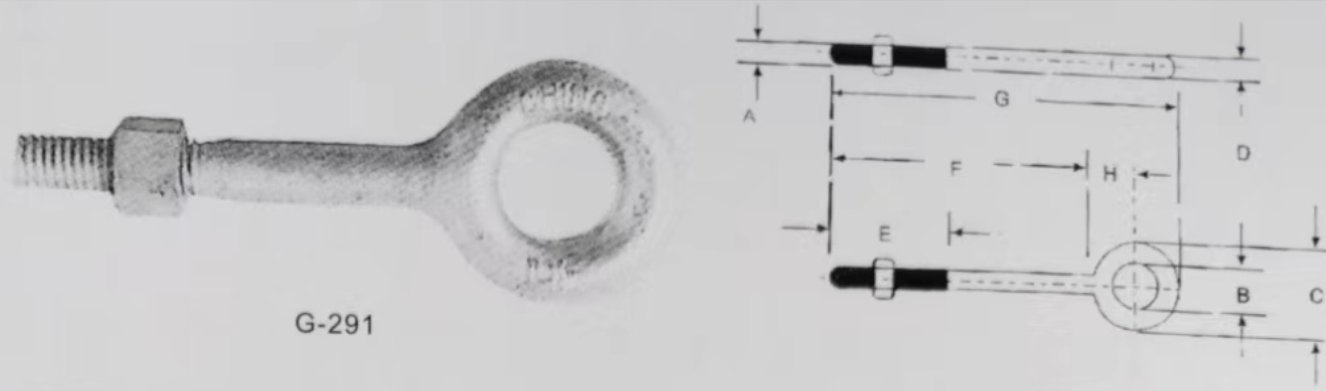

Table parameters
| Shank Dia.& Length (in.) | Woking Load Limit (lbs.) | Weight Per 100 (lbs.) | DIMENSIONS (in.) | |||||||
| A | B | C | D | E | F | G | H | |||
| 1/4×2 | 500 | 6.00 | .25 | .50 | 1.00 | .25 | 1.50 | 2.00 | 3.06 | 56 |
| 1/4×4 | 500 | 13.50 | .25 | .50 | 1.00 | .25 | 2.50 | 4.00 | 5.06 | 56 |
| 5/16×21/4 | 800 | 18.75 | .31 | 62 | 1.25 | .31 | 1.50 | 2.25 | 3.56 | 69 |
| 5/16×41/4 | 800 | 25.00 | .31 | .62 | 1.25 | .31 | 2.50 | 4.25 | 5.56 | 69 |
| 3/8×21/2 | 1200 | 24.33 | .38 | .75 | 1.50 | .38 | 1.50 | 2.50 | 4.12 | .88 |
| 3/8×41/2 | 1200 | 37.50 | .38 | .75 | 1.50 | .38 | 2.50 | 4.50 | 6.12 | .88 |
| 3/8×6 | 1200 | 43.75 | .38 | .75 | 1.50 | .38 | 2.50 | 6.00 | 7.62 | .88 |
| 1/2×31/4 | 2200 | 50.00 | .50 | 1.00 | 2.00 | 50 | 1.50 | 3.25 | 5.38 | 1.12 |
| 1/2×6 | 2200 | 62.50 | .50 | 1.00 | 2.00 | .50 | 3.00 | 6.00 | 8.12 | 1.12 |
| 1/2×8 | 2200 | 75.00 | .50 | 1.00 | 2.00 | .50 | 3.00 | 8.00 | 10.12 | 1.12 |
| 1/2×10 | 2200 | 88.00 | .50 | 1.00 | 2.00 | .50 | 3.00 | 10.00 | 12.12 | 1.12 |
| 1/2×12 | 2200 | 100.00 | 50 | 1.00 | 2.00 | .50 | 3.00 | 12.00 | 14.12 | 1.12 |
| 5/8×4 | 3500 | 101.25 | 62 | 1.25 | 2.50 | .62 | 2.00 | 4.00 | 6.69 | 1.44 |
| 5/8×6 | 3500 | 120.00 | .62 | 1.25 | 2.50 | .62 | 3.00 | 6.00 | 8.69 | 1.44 |
| 5/8×8 | 3500 | 131.00 | .62 | 1.25 | 2.50 | .62 | 3.00 | 8.00 | 10.69 | 1.44 |
| 5/8×10 | 3500 | 162.50 | .62 | 1.25 | 2.50 | .62 | 3.00 | 10.00 | 12.69 | 1.44 |
| 5/8×12 | 3500 | 175.00 | .62 | 1.25 | 2.50 | .62 | 4.00 | 12.00 | 14.69 | 1.44 |
| 3/4×41/2 | 5200 | 185.90 | .75 | 1.50 | 3.00 | .75 | 2.00 | 4.50 | 7.69 | 1.69 |
| 3/4×6 | 5200 | 180.00 | .75 | 1.50 | 3.00 | .75 | 3.00 | 6.00 | 9.19 | 1.69 |
| 3/4×8 | 5200 | 200.00 | .75 | 1.50 | 3.00 | .75 | 3.00 | 8.00 | 11.19 | 1.69 |
| 3/4×10 | 5200 | 237.50 | .75 | 1.50 | 3.00 | .75 | 3.00 | 10.00 | 13.19 | 1.69 |
| 3/4×12 | 5200 | 251.94 | .75 | 1.50 | 3.00 | .75 | 4.00 | 12.00 | 15.19 | 1.69 |
| 3/4×15 | 5200 | 300.00 | .75 | 1.50 | 3.00 | .75 | 5.00 | 15.00 | 18.19 | 1.69 |
| 7/8×5 | 7200 | 275.00 | .88 | 1.75 | 3.50 | .88 | 2.50 | 5.00 | 8.75 | 2.00 |
| 7/8×8 | 7200 | 325.00 | .88 | 1.75 | 3.50 | .88 | 4.00 | 8.00 | 11.75 | 2.00 |
| 7/8×12 | 7200 | 400.00 | .88 | 1.75 | 3.50 | 88 | 4.00 | 12.00 | 15.75 | 2.00 |
| 1×6 | 10000 | 425.00 | 1.00 | 2.00 | 4.00 | 1.00 | 3.00 | 6.00 | 10.31 | 2.31 |
| 1×9 | 10000 | 452.00 | 1.00 | 2.00 | 4.00 | 1.00 | 4.00 | 9.00 | 13.31 | 2.31 |
| 1×12 | 10000 | 550.00 | 1.00 | 2.00 | 4.00 | 1.00 | 4.00 | 12.00 | 16.31 | 2.31 |
| 1×18 | 10000 | 650.00 | 1.00 | 2.00 | 4.00 | 1.00 | 7.00 | 18.00 | 22.31 | 2.31 |
| 11/4×8 | 15200 | 750.00 | 1.25 | 2.50 | 5.00 | 1.25 | 4.00 | 8.00 | 13.38 | 2.88 |
| 11/4×12 | 15200 | 900.00 | 1.25 | 2.50 | 5.00 | 1.25 | 4.00 | 12.00 | 17.28 | 2.88 |
| 11/4×20 | 15200 | 1150.00 | 1.25 | 2.50 | 5.00 | 1.25 | 6.00 | 20.00 | 25.38 | 2.88 |
