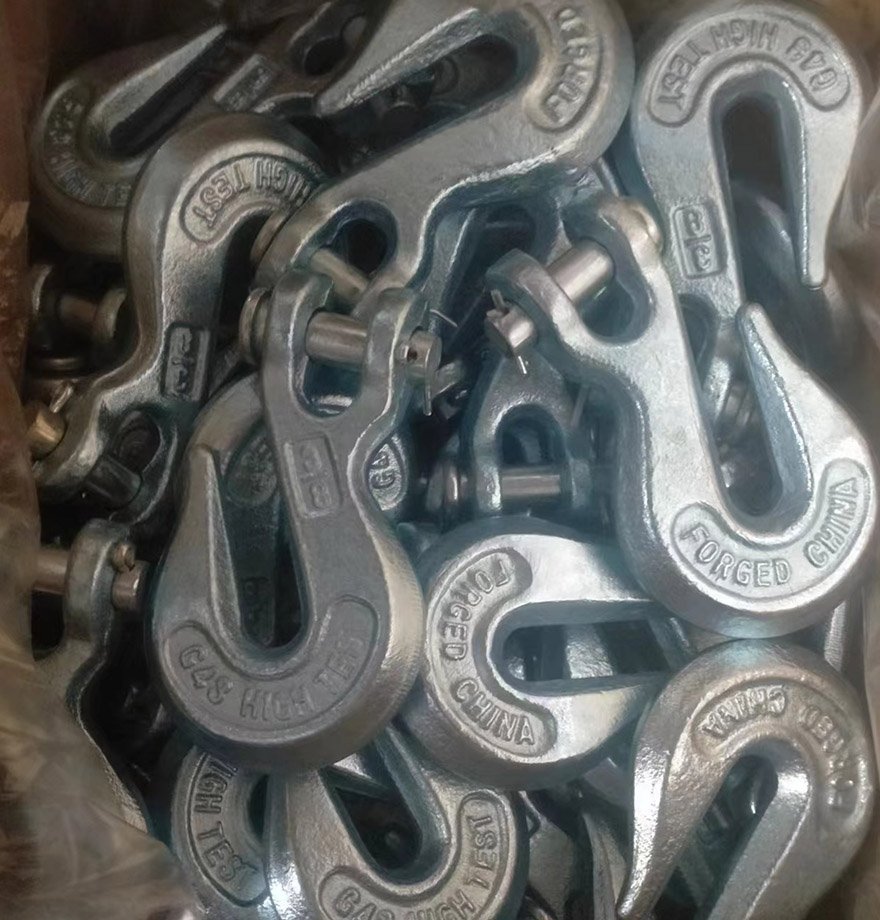

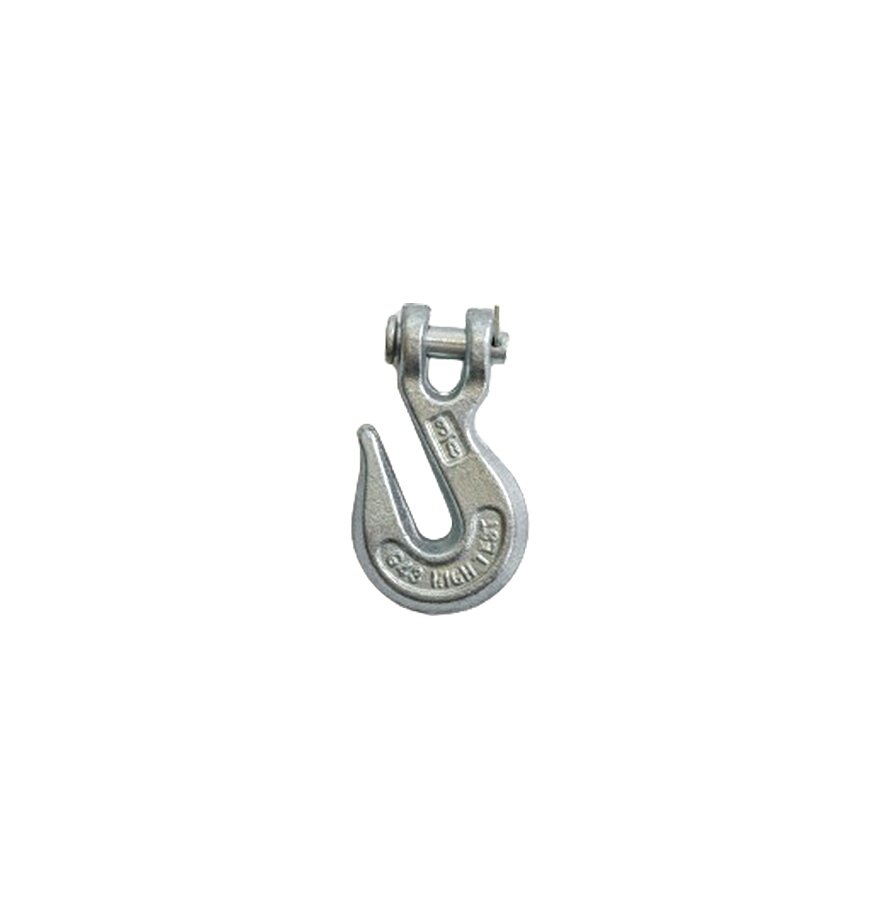

CLEVIS GRAB HOOK
Product Introduction
· Material:45# Carbon Steel or Alloy Steel
· Technology: Drop Forged
· Surface Finish: Powder Coated, Electro Galvanized
· Ultimate Load: 4 times of the WLL
· Class: Carbon Steel G43, Alloy Steel G70

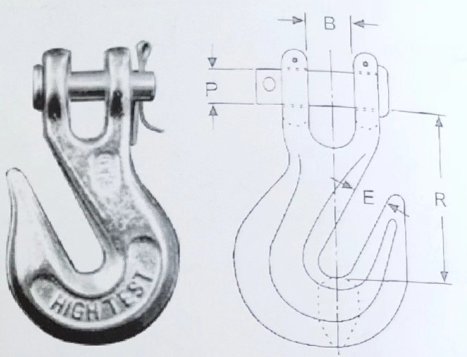

Table parameters
| Size of Chain | Woking Load Limit(Lbs) | Dimensions(In) | Weigh (Lbs) | ||||
| H-330 | A-330 | B | E | P | R | ||
| 1/4” | 2.6 | 3.6 | 0.36 | 0.4 | 0.38 | 1.97 | 0.4 |
| 5/16” | 3.9 | 5400 | 0.4 | 0.44 | 0.44 | 2.26 | 0.79 |
| 3/8” | 5400 | 7500 | 0.48 | 0.5 | 0.47 | 2.63 | 1 |
| 7/16" | 7200 | 10000 | 0.66 | 0.56 | 0.56 | 2.75 | 1.5 |
| 1/2" | 9200 | 12750 | 0.75 | 0.66 | 0.63 | 3.19 | 2.1 |
| 5/8" | 12750 | 19000 | 0.91 | 0.78 | 0.75 | 4.09 | 4.2 |
| 3/4” | 18500 | 27000 | 0.94 | 0.94 | 0.88 | 4.63 | 6.5 |
