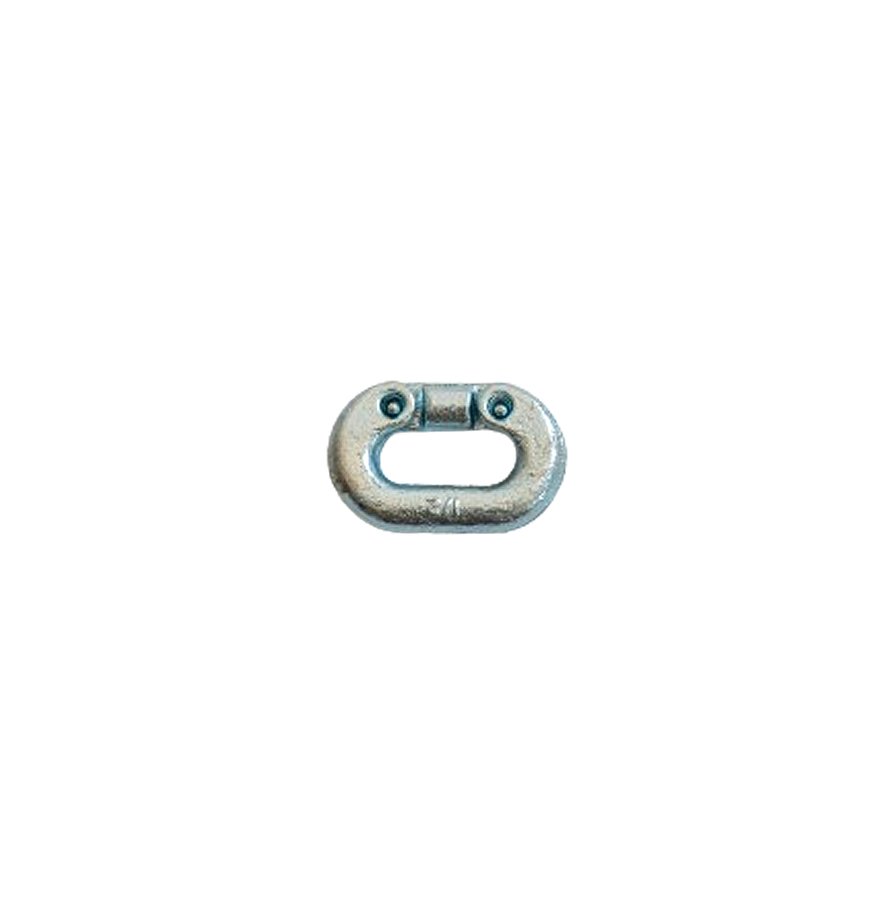

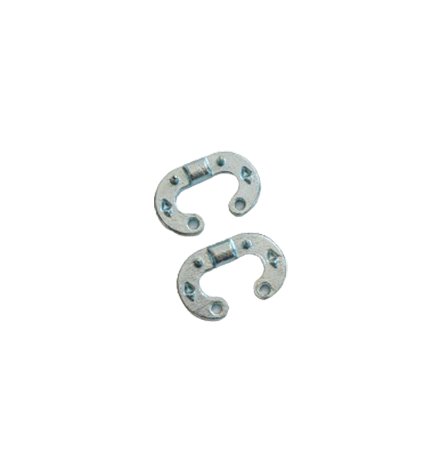

FORGED CONNECTING LINK
Product Introduction
· Material: 45# Carbon Steel
· Surface: Hot Dip Galvanized, Electro Galvanized
· Technology: Drop Forged
· Size: From 3/16” to 3/4”

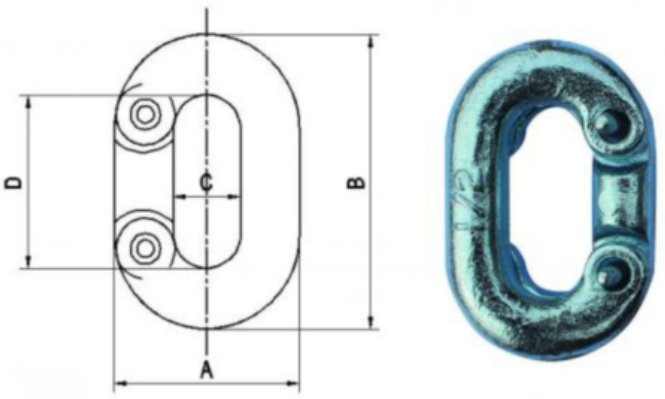

Table parameters
| SIZE | A(mm) | B(mm) | C(mm) | D(mm) | WLL(LBS) |
| 3/16 | 20.5 | 28.5 | 8 | 16 | 800 |
| 114 | 25 | 38 | 11 | 22 | 1300 |
| 5/16 | 30 | 44.5 | 12.7 | 25 | 1900 |
| 3/8 | 35 | 54 | 14 | 28 | 2700 |
| 1/2 | 4 | 68 | 16 | 40 | 4700 |
| 58 | 54 | 86 | 21 | 50 | 7200 |
| 3/4 | 64 | 99 | 24 | 70 | 10200 |
