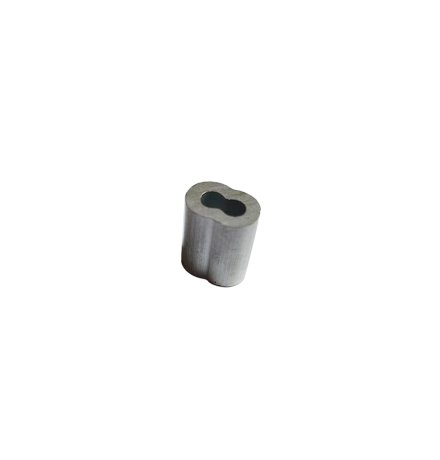

ALUMINIUM HOURGLASS SLEEVES

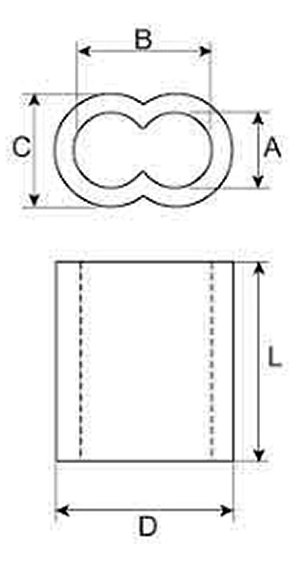

Table parameters
| SIZE | A | B | C | D | L | WEIGHT Kgs/1000Pcs | ||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | |
| 3/64 | 1.19 | 1/16 | 1.59 | 1/8 | 3.18 | 9/64 | 3.6 | 13/64 | 5.2 | 3/8 | 9.5 | 0.276 |
| 1/16 | 1.58 | 5/64 | 1.98 | 5/32 | 3.97 | 11/64 | 4.4 | 1/4 | 6.4 | 3/8 | 9.5 | 0.433 |
| 5/64 | 1.98 | 3/32 | 2.38 | 3/16 | 4.76 | 13/64 | 5.2 | 5/16 | 7.9 | 3/8 | 9.5 | 645 |
| 3/32 | 2.38 | 1/8 | 3.18 | 1/4 | 6.35 | 9/32 | 7.1 | 13/32 | 10.3 | 1/2 | 12.7 | 1.45 |
| 1/8 | 3.18 | 5/32 | 3.97 | 5/16 | 7.94 | 11/32 | 8.7 | 1/2 | 127 | 5/8 | 15.8 | 2.70 |
| 5/32 | 3.97 | 3/16 | 4.76 | 3/8 | 9.53 | 3/8 | 9.53 | 9/16 | 14.3 | 11/16 | 17.4 | 3.67 |
| 3/16 | 4.76 | 7/32 | 5.56 | 7/16 | 11.11 | 7/16 | 11.11 | 21/32 | 16.7 | 1 | 25.4 | 7.18 |
| 7/32 | 5.56 | 1/4 | 6.35 | 1/2 | 12.70 | 1/2 | 12.7 | 3/4 | 19 | 1-1/16 | 26.9 | 10.00 |
| 1/4 | 6.35 | 9/32 | 7.14 | 9/16 | 14.29 | 17/32 | 13.5 | 13/16 | 20.6 | 1-1/8 | 28.5 | 11.76 |
| 9/32 | 7.14 | 5/16 | 7.94 | 5/8 | 15.88 | 9/16 | 14.3 | 7/18 | 22.2 | 1-3/16 | 30.1 | 13.62 |
| 5/16 | 7.94 | 3/8 | 9.53 | 23/32 | 19.05 | 11/16 | 17.5 | 1-1/32 | 26.2 | 1-1/4 | 31.7 | 20.94 |
| 3/8 | 9.53 | 7/16 | 11.11 | 27/32 | 22.23 | 3/4 | 19.1 | 1-5/32 | 29.4 | 1-7/16 | 36.5 | 28.18 |
| 7/16 | 11.11 | 1/2 | 12.7 | 1 | 25.40 | 15/16 | 23.8 | 1-7/16 | 36.5 | 1-11/16 | 42.8 | 52.00 |
| 1/2 | 12.7 | 9/16 | 14.29 | 1-1/8 | 28.58 | 1-1/16 | 27 | 1-5/8 | 41.3 | 2 | 50.8 | 80.15 |
| 9/16 | 14.29 | 5/8 | 15.88 | 1-1/ | 31.75 | 1-1/8 | 28.6 | 1-3/4 | 44.5 | 2-1/8 | 53.9 | 99.88 |
| 5/8 | 15.88 | 11/16 | 17.46 | 1-3/8 | 34.93 | 1-1/4 | 31.8 | 1-15/16 | 49.2 | 2-1/2 | 63.5 | 139.78 |
