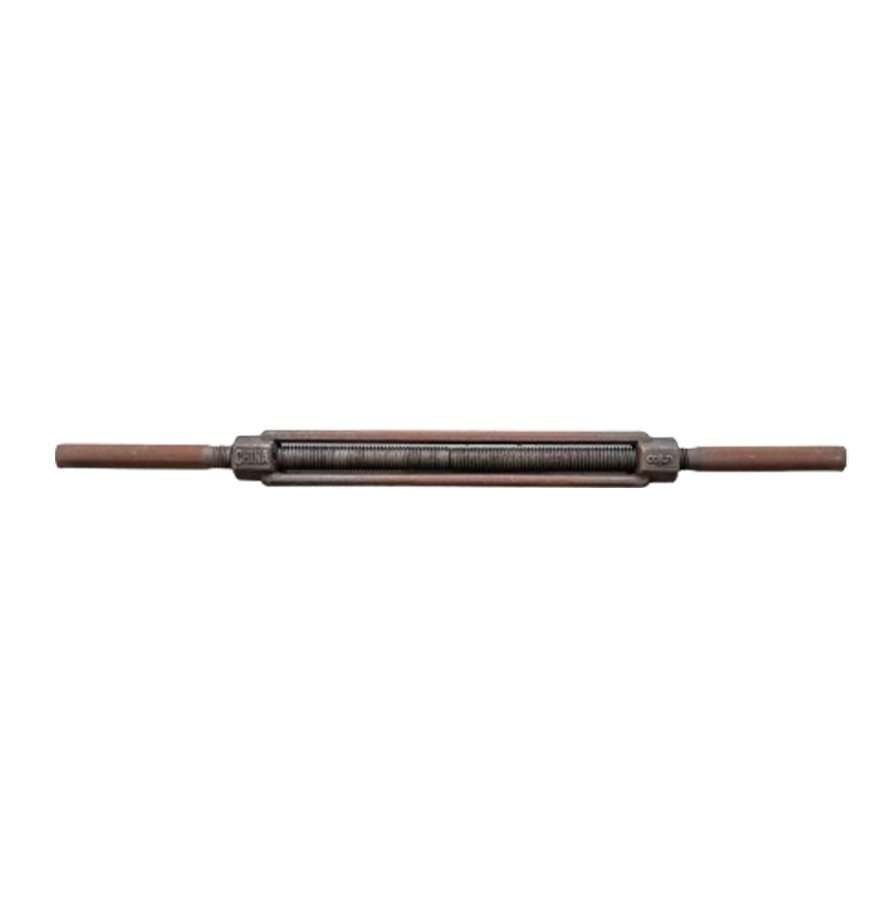

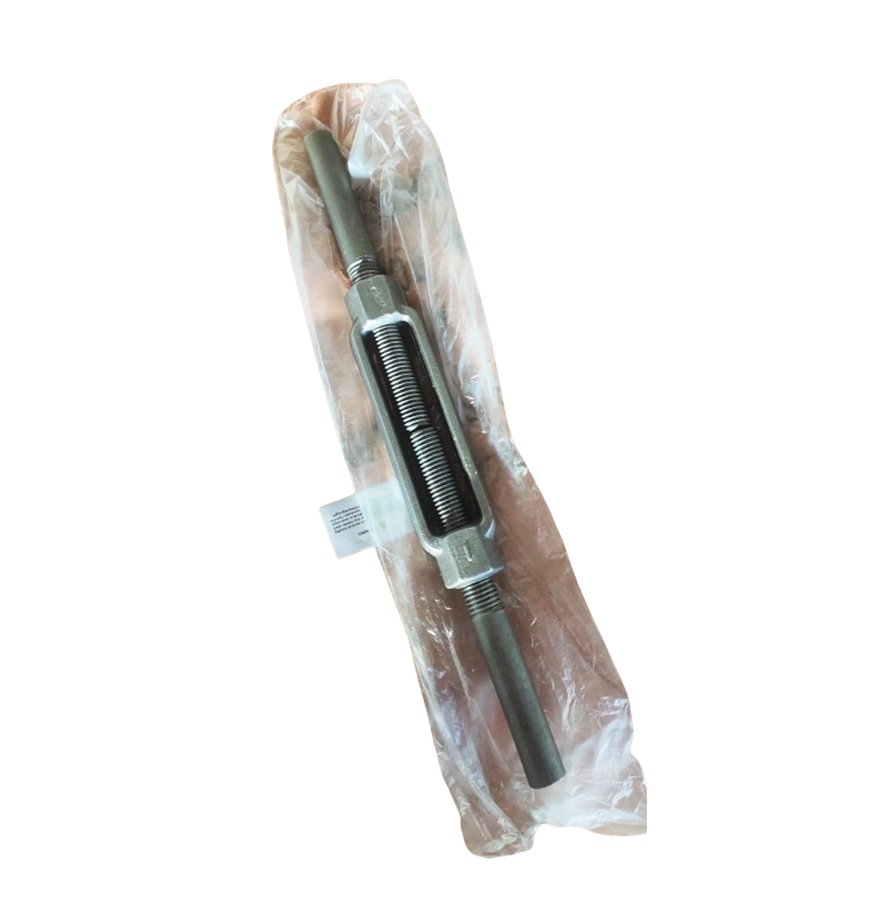

U.S. TYPE DROP FORGED STUB END TURNBUCKLE
Product Introduction
Standard: US Standard
Material: 45# Carbon Steel
Technology: Drop Forged
Surface Finish: Hot Dip Galvanized
Ultimate Load: 5 Times of The WILL
Table parameters
| Thread Dia & Take Up | W.L.L. (lbs) | Weight (lbs) |
| 3/8X6 | 1200 | 0.75 |
| 1/2X6 | 2200 | 1.25 |
| 5/8X6 | 3500 | 2.11 |
| 3/4X6 | 5200 | 3.27 |
| 7/8X6 | 7200 | 4.78 |
| 1X6 | 10000 | 6.36 |
| 1X12 | 10000 | 8.8 |
| 1 1/8X6 | 12400 | 8.88 |
| 1 1/4X6 | 15200 | 10.18 |
| 1 1/4X12 | 15200 | 13.6 |
| 1 1/2X12 | 21400 | 20.44 |
