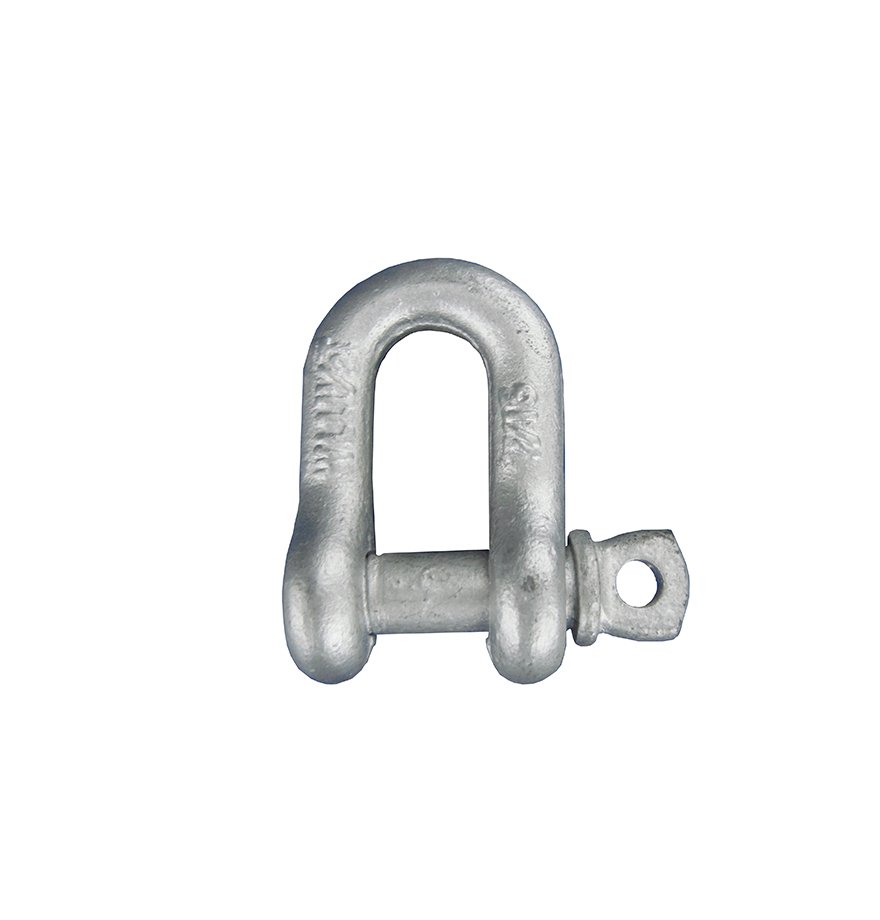

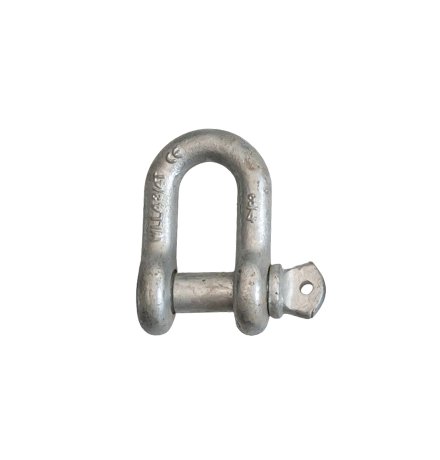

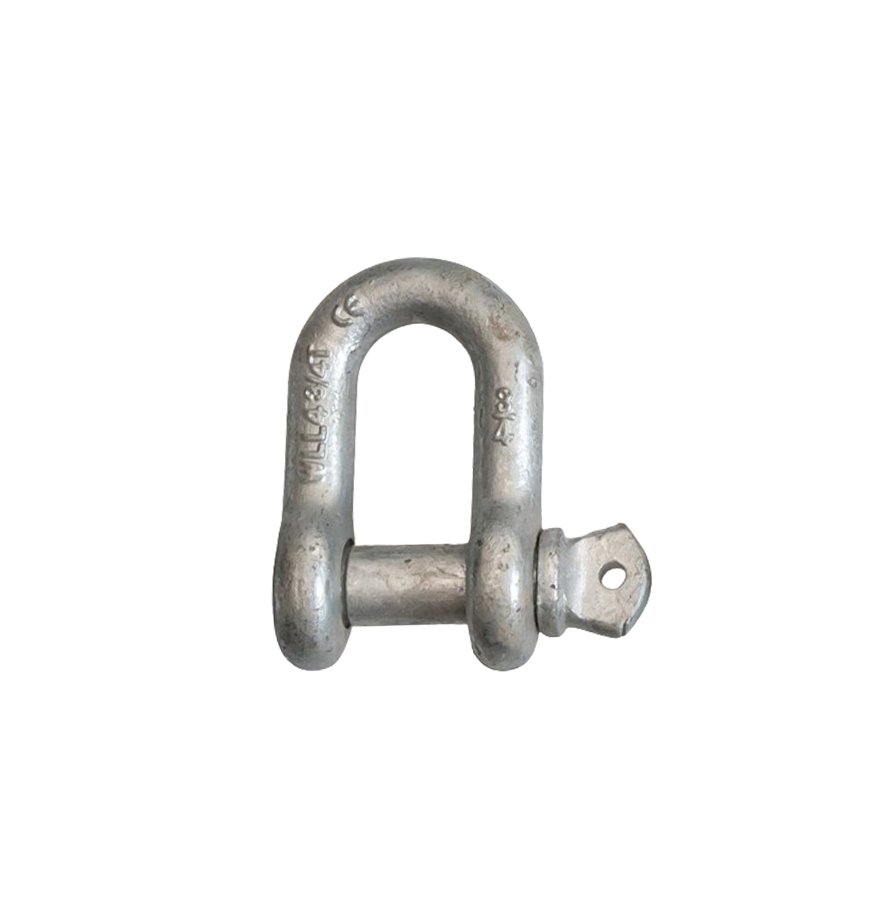

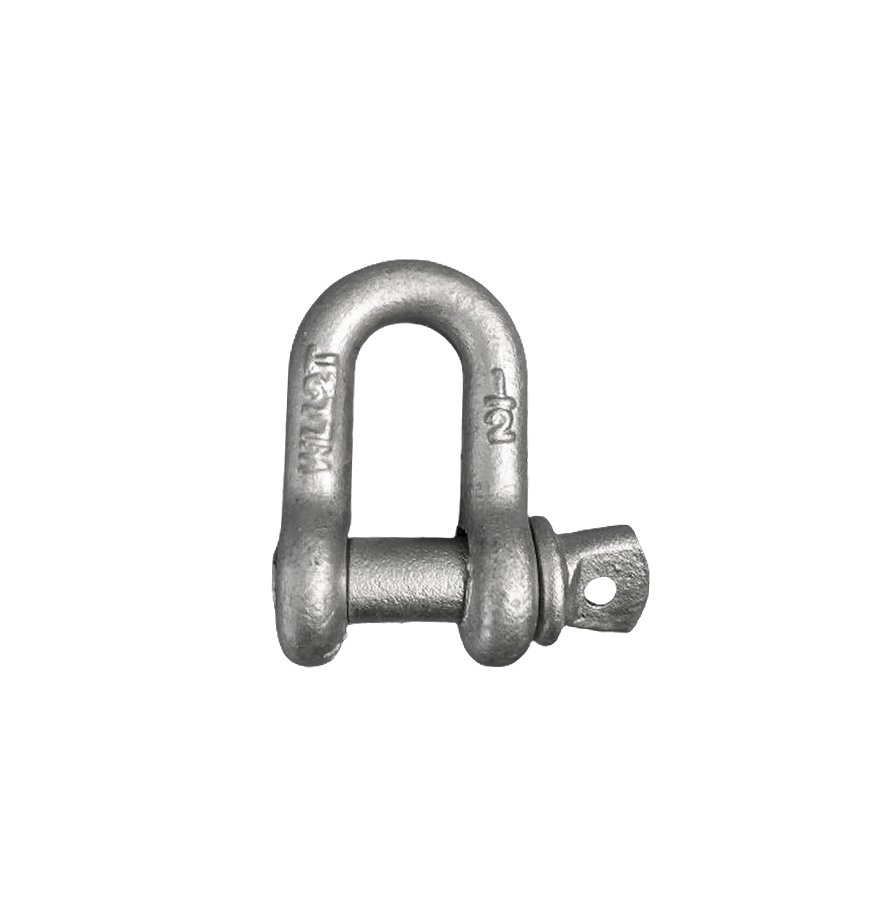

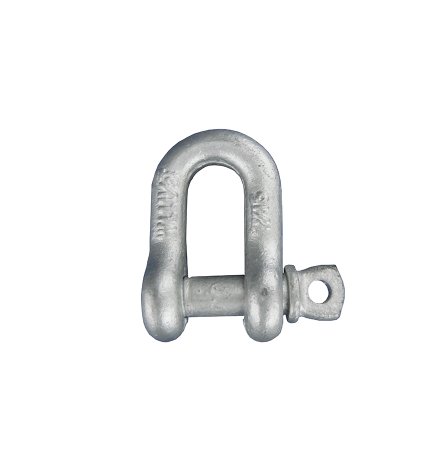

U.S. TYPE DROP FORGED SCREW PIN CHAIN SHACKLE
Product Introduction
Technology: Drop Forged
Surface Finish: Electro Galvanized, Hot Dip Galvanized, Powder Coated
Ultimate Load: 4 Times or 6 Times of the WILL
Heat Treatment: 6 Times
WLL: 1/2-55T
Usage: Lifting and Connecting, Wire Rope Fittings, Chain Fittings, Maring Hardware Fittings
Table parameters
| Size (in) | WLL (t) | Dimensions(in) | Weight (lbs) | ||||||||||
| A | B | C | D | E | F | G | K | L | M | G-210 S-210 | G-215 S-215 | ||
| 1/4 | 1/2 | 0.47 | 0.31 | 0.25 | 0.25 | 0.97 | 0.62 | 0.97 | 1.59 | 0.19 | 1.43 | 0.11 | 0.10 |
| 5/16 | 3/4 | 0.53 | 0.38 | 0.31 | 0.31 | 1.15 | 0.75 | 1.07 | 1.91 | 0.22 | 1.71 | 0.17 | 0.18 |
| 3/8 | 1 | 0.66 | 0.44 | 0.38 | 0.38 | 1.42 | 0.92 | 1.28 | 2.31 | 0.25 | 2.02 | 0.24 | 0.25 |
| 7/16 | 11/2 | 0.75 | 0.50 | 0.44 | 0.44 | 1.63 | 1.06 | 1.48 | 2.67 | 0.31 | 2.37 | 0.40 | 0.40 |
| 1/2 | 2 | 0.81 | 0.63 | 0.50 | 0.50 | 1.81 | 1.18 | 1.66 | 3.03 | 0.38 | 2.69 | 0.59 | 0.50 |
| 5/8 | 31/4 | 1.06 | 0.75 | 0.62 | 0.63 | 2.32 | 1.50 | 2.04 | 3.76 | 0.44 | 3.34 | 1.21 | 1.21 |
| 3/4 | 43/4 | 1.25 | 0.88 | 0.81 | 0.75 | 2.75 | 1.81 | 2.40 | 4.53 | 0.50 | 3.97 | 2.25 | 2.00 |
| 7/8 | 61/2 | 1.44 | 1.00 | 0.97 | 0.88 | 3.20 | 2.10 | 2.86 | 5.33 | 0.50 | 4.5 | 3.16 | 3.28 |
| 1 | 81/2 | 1.69 | 1.13 | 1.00 | 1.00 | 3.69 | 2.38 | 3.24 | 5.94 | 0.56 | 5.13 | 4.75 | 4.75 |
| 11/8 | 91/2 | 1.81 | 1.25 | 1.25 | 1.13 | 4.07 | 2.69 | 3.61 | 6.78 | 0.63 | 5.71 | 6.75 | 6.30 |
| 11/4 | 12 | 2.03 | 1.38 | 1.38 | 1.25 | 4.53 | 3.00 | 3.97 | 7.50 | 0.69 | 6.25 | 9.06 | 9.00 |
| 13/8 | 13 1/2 | 2.25 | 1.50 | 1.50 | 1.38 | 5.01 | 3.31 | 4.43 | 8.28 | 0.75 | 6.53 | 11.63 | 12.00 |
| 11/2 | 17 | 2.38 | 1.62 | 1.62 | 1.50 | 5.38 | 3.62 | 4.87 | 9.05 | 0.81 | 7.33 | 15.95 | 16.15 |
| 13/4 | 25 | 2.88 | 2.12 | 2.12 | 1.75 | 6.38 | 4.19 | 5.78 | 10.97 | 1.00 | 9.06 | 26.75 | 29.96 |
| 2 | 32 | 3.25 | 2.00 | 2.00 | 2.00 | 7.25 | 5.00 | 6.77 | 12.74 | 1.22 | 10.35 | 42.31 | 43.25 |
| 21/2 | 55 | 4.12 | 2.62 | 2.63 | 2.63 | 9.38 | 5.68 | 8.07 | 14.85 | 1.38 | 13.00 | 71.75 | 一 |
