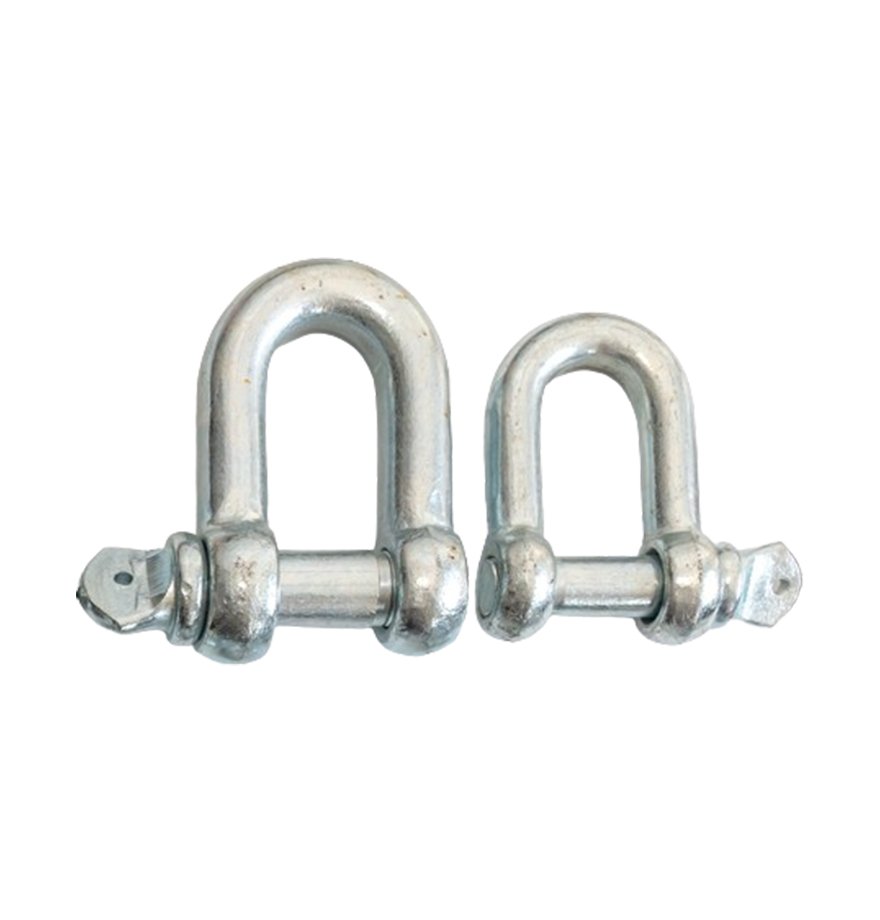

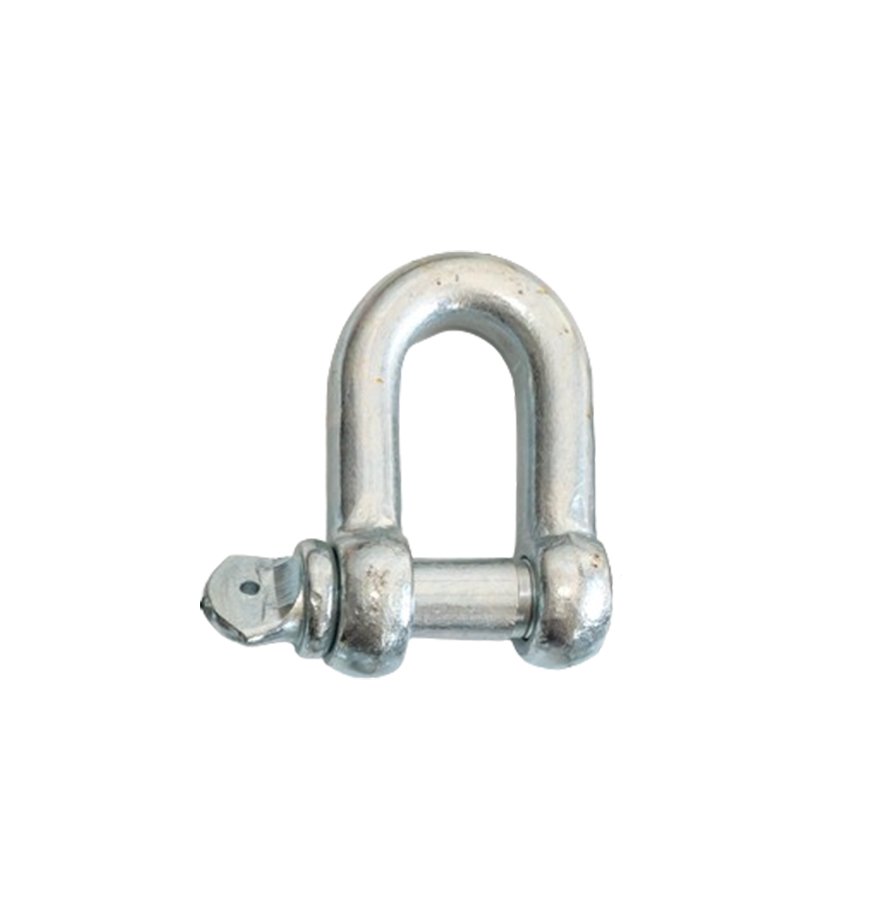

U.S. TYPE COMMERCIAL DEE SHACKLE
Product Introduction
Material : Q235 Carbon Steel
Technology: Free Forged
Surface Finish: Electro Galvanized，Hot Galvanized
WLL: 200-10500KG
Usage: Lifting and Connecting, Wire Rope Fittings, Chain Fittings, Maring Hardware Fittings
Table parameters
| Size (in) | W.L.L. (tons) | Weight (Ibs) |
| 3/16" | 0.2 | 0.044 |
| 1/4" | 0.3 | 0.088 |
| 5/16" | 0.5 | 0.11 |
| 3/8" | 0.75 | 0.265 |
| 1/2" | 1.5 | 0.436 |
| 5/8" | 2 | 1.317 |
| 3/4" | 3 | 1.896 |
| 7/8" | 3.5 | 3.05 |
| 1" | 5 | 4.356 |
| 1-1/8" | 6 | 6.535 |
| 1-1/4" | 7.5 | 8.276 |
| 1-1/2" | 10.5 | 16.335 |
