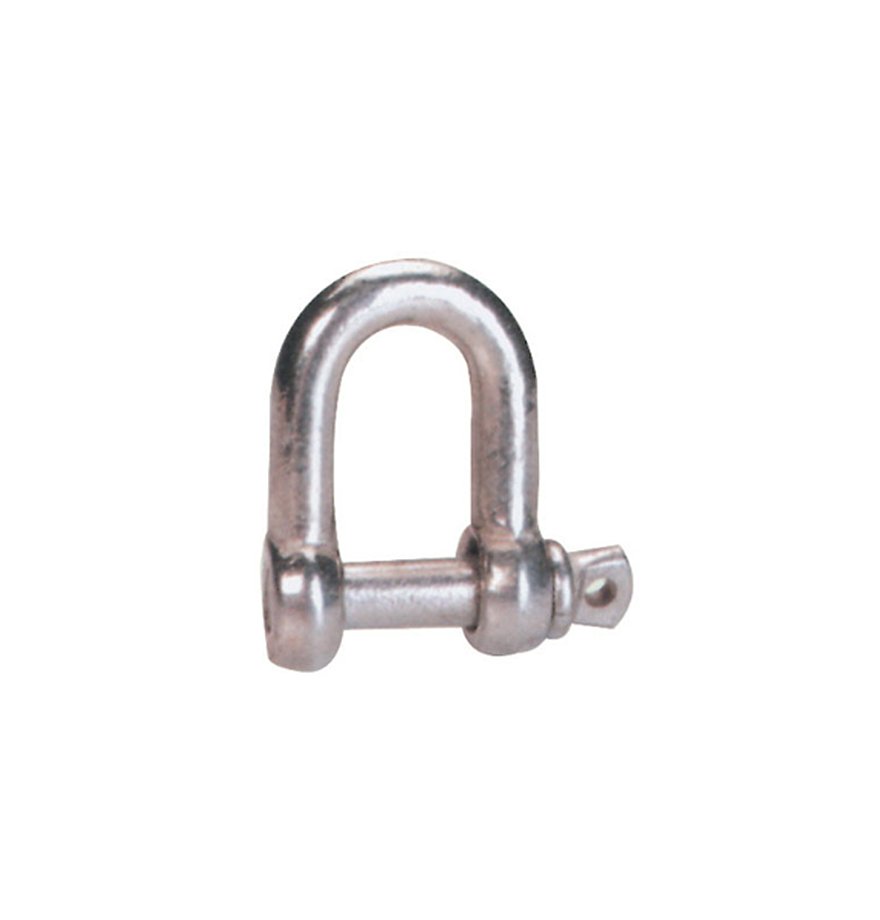

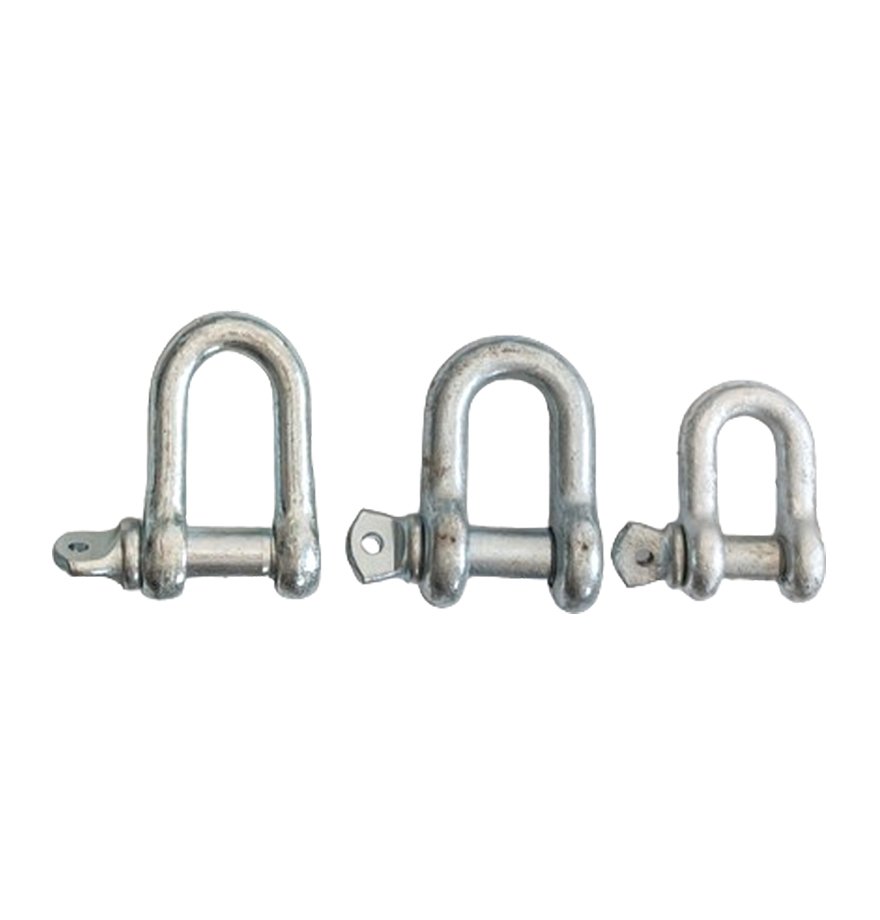

EUROPEAN TYPE LARGE DEE SHACKLE
Product Introduction
Material : Q235 Carbon Steel
Technology: Free Forged
Surface Finish: Electro Galvanized
WLL: 80-8000KG
Usage: Lifting and Connecting, Wire Rope Fittings, Chain Fittings, Maring Hardware Fittings
Table parameters
| Size(D) (mm) | WLL (kg) | Dimensions(mm) | Weight (kg) | |||
| d | a | C | b | |||
| 6 | 100 | 6 | 13 | 25 | 14 | 0.023 |
| 8 | 200 | 8 | 16 | 32 | 18 | 0.048 |
| 10 | 320 | 10 | 19 | 38 | 20 | 0.085 |
| 12 | 520 | 12 | 25 | 51 | 26 | 0.17 |
| 16 | 800 | 16 | 32 | 64 | 33 | 0.385 |
| 20 | 1100 | 20 | 38 | 76 | 40 | 0.76 |
| 22 | 1500 | 22 | 44 | 89 | 50 | 1.07 |
| 25 | 2100 | 25 | 51 | 100 | 57 | 1.55 |
| 28 | 3000 | 28 | 57 | 115 | 68 | 2.25 |
| 32 | 3500 | 32 | 64 | 127 | 73 | 3.35 |
| 38 | 5000 | 38 | 76 | 152 | 85 | 5.85 |
| 45 | 7000 | 45 | 90 | 180 | 96 | 10 |
| 50 | 8000 | 50 | 102 | 200 | 108 | 12.5 |
